680005 ELBOW GAUGE COCK ISO 228 M
UPPER Elbow GAUGE-COCK
Connection: ISO 228 male thread
Material: Aisi 316L (1.4404)
Measure: from 3/8” to 1”
Operating temperature: -20°C+160°C
Outer finish: Polished
On request:
• Connection for glass pipe in other measure
M.O.C.A. CE 1935/2004

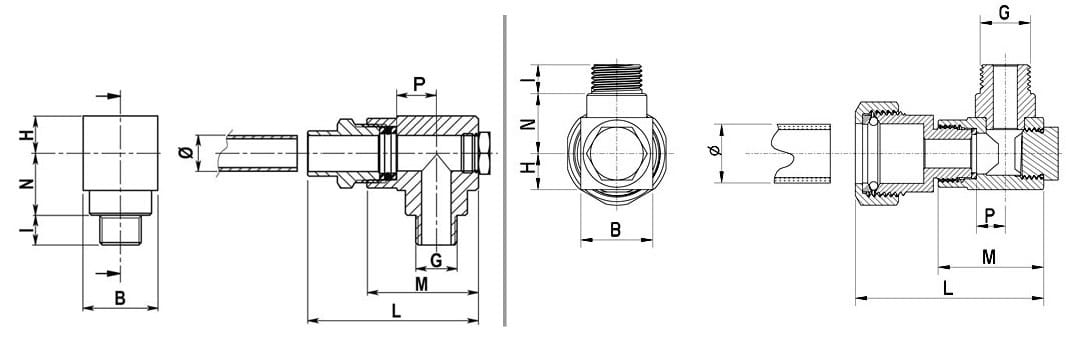

| G | Ø | L | B | M | P | N | I | H | PN | Kg. | CODE AISI 316L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8" | 12 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,30 | 680005 60600 |
| 3/8" | 14 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,30 | 680005 60700 3D |
| 3/8" | 16 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,30 | 680005 60800 |
| 1/2" | 12 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,31 | 680005 61000 |
| 1/2" | 14 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,31 | 680005 61100 |
| 1/2" | 16 | 65 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,31 | 680005 61200 |
| 1/2" | 24 | 78 | 30 | 44 | 12 | 25 | 12 | 15 | 16 | 0,46 | 680005 61600 3D |
| 1" | 20 | 60 | 40 | 50 | 18 | 25 | 14 | 20 | 16 | 0,61 | 680005 62300 3D |
| POS. | DENOMINATION | PCS | MAT. |
|---|---|---|---|
| 1 | Body | 1 | AISI 316L |
| 2 | Stringivetro | 1 | AISI 316L |
| 3 | Ring nut | 1 | AISI 316L |
| 4 | Plug | 1 | AISI 316L |
| 5 | Premi OR | 1 | PTFE |
| 6 | Guarnizione tubo vetro | 1 | PTFE |
| 7 | OR tappo | 1 | FKM |
| 8 | OR/Guarnizione Stringivetro | 1 | FKM |
