300142_T_STANDARD SEALS_Butt-Welding In According To BS-OD (ASTM A-270)
THREE-way ball valve 4 seals with “T” port
Drive: Inox lever
Connection: Butt-welding in according to BS-OD (ASTM A-270)
Flow: Full
Material: Aisi 316L (1.4404)
Measure: DN10 a DN100
Seals: Modified Virgin P.T.F.E.

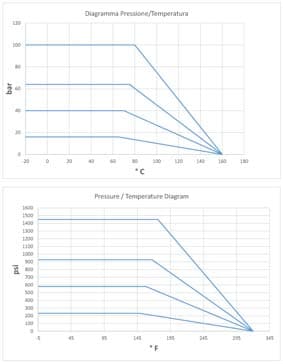

Operating temperature: -20°C+170°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C
| DN | ØA x B | M | L | G | C | H | PN | Kg | COD. AISI 316L |
|---|---|---|---|---|---|---|---|---|---|
| 10 | 12,7 X 1,65 | 17 | 108 | 22,5 | 110 | 60 | 100 | - | 300142 6A710 |
| 15 | 19,05 X 1,65 | 18 | 118 | 26 | 110 | 65 | 100 | - | 300142 6B910 |
| 20 | 25,4 X 1,65 | 19 | 130 | 30 | 160 | 70 | 100 | - | 300142 6D710 |
| 25 | 25,4 X 1,65 | 19 | 140 | 35 | 160 | 80 | 64 | 2,78 | 300142 6D810 |
| 32 | 38,1 X 1,65 | 19 | 156 | 42,5 | 190 | 95 | 64 | - | 300142 6J910 |
| 40 | 38,1 X 1,65 | 19 | 172 | 50 | 190 | 110 | 64 | - | 300142 6K110 |
| 50 | 50,8 X 1,65 | 19 | 182 | 55 | 220 | 120 | 40 | - | 300142 6M810 |
| 65 | 63,5 X 1,65 | 21 | 196 | 80 | 285 | 130 | 40 | - | 300142 6R710 |
| 80 | 76,1 X 2 | 27 | 256 | 100 | 310 | 145 | 40 | - | 300142 6U710 |
| 100 | 101,6 X 2,11 | 27 | 286 | 120 | 310 | 160 | 16 | - | 300142 6X410 |
| Pos. | Denominazione | P.zi | Mat. |
|---|---|---|---|
| 1 | Corpo | 1 | AISI 316L |
| 2 | Sfera | 1 | AISI 316L |
| 3 | Manicotti | 3 | AISI 316L |
| 4 | Perno | 1 | AISI 316L |
| 5 | Guarnizioni sfera | 4 | PTFE Vergine Modificato |
| 6 | Guarnizioni manicotti | 3 | PTFE |
| 7 | Guarnizione perno | 1 | PTFE |
| 8 | Guarnizione perno | 1 | PTFE |
| 9 | OR di tenuta perno | 1 | FKM |
| 10 | Ghiera di registro | 1 | AISI 304L (303) |
| 11 | Dado | 1 | AISI 304L |
| 12 | Leva | 1 | AISI 304L |
| 13 | Vite | 1 | AISI 304L |
| 14 | Impugnatura | 1 | DUROPLAST (PF) |
