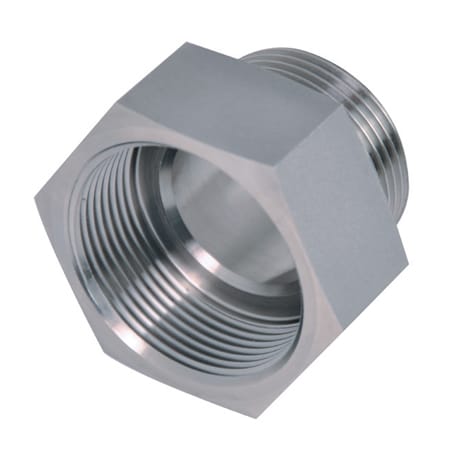

767016 Femmina per riduzione Maschio ISO 228 gas cilindrico
Femmina per RIDUZIONE Maschio ISO 228 GAS CILINDRICO
Materiale: AISI 316L (1.4404)
A richiesta:
M.O.C.A. CE 1935/2004

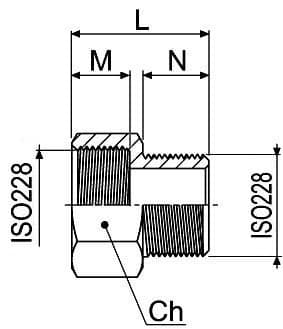

| ISO 228 F/M | M | N | Ch | L | Kg | CODICE AISI 316L |
|---|---|---|---|---|---|---|
| 1/4" x 1/8" | 13 | 9 | 19 | 25 | 0.030 | 767016 60200 3D |
| 3/8" x 1/8" | 14 | 9 | 22 | 26 | 0,037 | 767016 60600 3D |
| 3/8" x 1/4" | 14 | 11 | 22 | 28 | 0.041 | 767016 60700 3D |
| 1/2" x 1/8" | 15 | 9 | 27 | 27 | 0,056 | 767016 61200 3D |
| 1/2" x 1/4" | 15 | 11 | 27 | 29 | 0.058 | 767016 61300 3D |
| 1/2" x 3/8" | 15 | 13 | 27 | 31 | 0.062 | 767016 61400 3D |
| 3/4" x 1/2" | 17 | 15 | 32 | 35 | 0.089 | 767016 61900 3D |
| 1" x 1/2" | 20 | 17 | 36 | 42 | 0.110 | 767016 62400 3D |
| 1" x 3/4" | 20 | 18 | 36 | 43 | 0.119 | 767016 62600 3D |
| 1"1/4 x 1/2" | 20 | 17 | 46 | 42 | 0.180 | 767016 63000 3D |
| 1"1/4 x 1" | 20 | 19 | 46 | 44 | 0.201 | 767016 63200 3D |
| 1" 1/2 x 1/2" | 20 | 17 | 55 | 42 | 0,27 | 767016 63700 3D |
| 1" 1/2 x 1" | 20 | 19 | 55 | 44 | 0,288 | 767016 63900 3D |
| 1"1/2 x 1"1/4 | 20 | 19 | 55 | 44 | 0,303 | 767016 64000 3D |
| 2" x 1/2" | 22 | 15 | 66 | 44 | 0,42 | 767016 64500 3D |
| 2" x 1" | 22 | 17 | 66 | 46 | 0,432 | 767016 64700 3D |
| 2" x 1" 1/4 | 22 | 19 | 66 | 46 | 0,39 | 767016 64800 3D |
| 2" x 1"1/2 | 22 | 20 | 66 | 46 | 0.368 | 767016 64900 3D |
| 3" x 2"1/2 | 24 | 25 | 95 | 55 | 0.810 | 767016 67000 3D |
| 4" x 3" | 32 | 30 | 125 | 70 | 1,8 | 767016 68200 3D |
| 5" x 4" | 37 | 35 | 150 | 80 | 2,6 | 767016 69600 3D |
