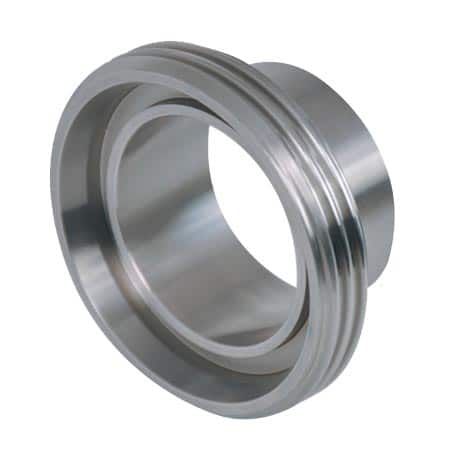

765403 FEMMINA DIN 11851 A SALDARE di TESTA SPESSORE SOTTILE
Femmina DIN 11851 A SALDARE di TESTA SPESSORE SOTTILE
Materiale: AISI 316L (1.4404)
A richiesta:
M.O.C.A. CE 1935/2004

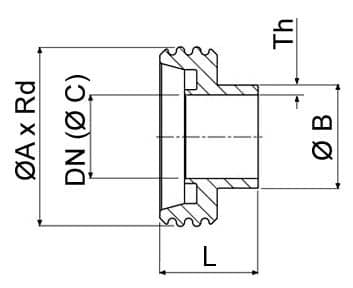

| DN ( Ø C ) | Ø A x Rd | B | L | Kg | CODICE AISI 304L | CODICE AISI 316L |
|---|---|---|---|---|---|---|
| 10 (9) | 28 x 1/8" | 12 x 1,5 | 21 | 0.04 | 765403 40200 | 765403 60200 |
| 10 (10) | 28 x 1/8" | 15 x 2,5 | 21 | 0.043 | 765403 40600 | 765403 60600 |
| 15 (15) | 34 x 1/8" | 18 x 1,5 | 21 | 0.06 | 765403 41100 | 765403 61100 |
| 20 (19) | 44 x 1/6" | 22 x 1,5 | 24 | 0.097 | 765403 41900 | 765403 61900 |
| 25 (22) | 52 x 1/6" | 25 x 1,5 | 29 | 0.139 | 765403 42400 | 765403 62400 |
| 25 (22,4) | 52 x 1/6" | 25.4 x 1,5 | 29 | 0.139 | 765403 42600 | 765403 62600 |
| 25 (25) | 52 x 1/6" | 28 x 1,5 | 28 | 0,128 | 765403 42800 | 765403 42800 |
| 25 (26) | 52 x 1/6" | 29 x 1.5 | 29 | 0.130 | 765403 42900 | 765403 62900 |
| 25 (26) | 52 x 1/6" | 30 x 2 | 28 | 0.134 | 765403 43100 | 765403 63100 |
| 25 (30) | 52 x 1/6" | 34 x 2 | 28 | 0.144 | 765403 43300 | 765403 63300 |
| 25 (37) | 52 x 1/6" | 40 x 1,5 | 28 | 0.151 | 765403 43500 | 765403 63500 |
| 25 (49) | 52 x 1/6" | 52 x 1,5 | 28 | 0.190 | 765403 43700 | 765403 63700 |
| 32 (29) | 58 x 1/6" | 32 x 1,5 | 32 | 0.150 | 765403 43800 | 765403 63800 |
| 32 (32) | 58 x 1/6" | 35 x 1,5 | 32 | 0.119 | 765403 44000 | 765403 64000 |
| 40 (35) | 65 x 1/6" | 38 x 1,5 | 33 | 0.180 | 765403 44800 | 765403 64800 |
| 40 (37) | 65 x 1/6" | 40 x 1,5 | 33 | 0,185 | 765403 45000 | 765403 65000 |
| 40 (38) | 65 x 1/6" | 41 x 1,5 | 33 | 0.187 | 765403 45200 | 765403 65200 |
| 50 (48) | 78 x 1/6" | 51 x 1,5 | 35 | 0.230 | 765403 45700 | 765403 65700 |
| 50 (49) | 78 x 1/6" | 52 x 1,5 | 35 | 0.248 | 765403 46000 | 765403 66000 |
| 60 (56) | 85 x 1/6" | 60 x 2 | 35 | 0.280 | 765403 46300 | 765403 66300 |
| 65 (66) | 95 x 1/6" | 70 x 2 | 40 | 0.394 | 765403 46500 3D | 765403 66500 3D |
| 80 (81) | 110 x 1/4" | 85 x 2 | 45 | 0.615 | 765403 47100 | 765403 67100 |
| 90 (85) | 120 x 1/4" | 89 x 2 | 45 | 0.729 | 765403 47500 | 765403 67500 |
| 100 (97,6) | 130 x 1/4" | 101,6 x2 | 54 | 0.760 | 765403 47800 | 765403 67800 |
| 100 (100) | 130 x 1/4" | 104 x 2 | 54 | 0.775 | 765403 48000 | 765403 68000 |
| 125 (125) | 160 x 1/4" | 129 x 2 | 46 | 1.217 | 765403 48700 | 765403 68700 |
| 150 (150) | 190 x 1/4" | 154 x 2 | 50 | 2.015 | 765403 49400 | 765403 69400 |
| 150 (150) | 190 x 1/4" | 157 x 3,5 | 50 | 2.208 | 765403 49600 | 765403 69600 |
