370130 L_3 SEALS_FOR ISO PIPE
THREE-way ball valve three seals with “L” port
Drive: Inox lever
Connection: CLAMP normative DIN 32676 TAB.3 REIHE B
For TUBE according to normative ISO 1127
Flow: Full and reduced
Material: Aisi 316L (1.4404)
Measure: from DN65 to DN100
Seals: Modified Virgin P.T.F.E.
Operating temperature: -20°C +170°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C
| CLAMP REIHE B OD | DN | L | G | Ø A | Ø B | C | H | PN | Kg | CODE AISI 316L |
|---|---|---|---|---|---|---|---|---|---|---|
| 76,1 | 65 | 196 | 80 | 91 | 72,1 | 285 | 130 | 16 | - | 370130 64710 |
| 88,9 | 80 | 256 | 100 | 106 | 84,3 | 310 | 145 | 16 | - | 370130 65110 |
| 114,3 | 100 | 286 | 120 | 130 | 109,7 | 310 | 160 | 10 | - | 370130 65310 |

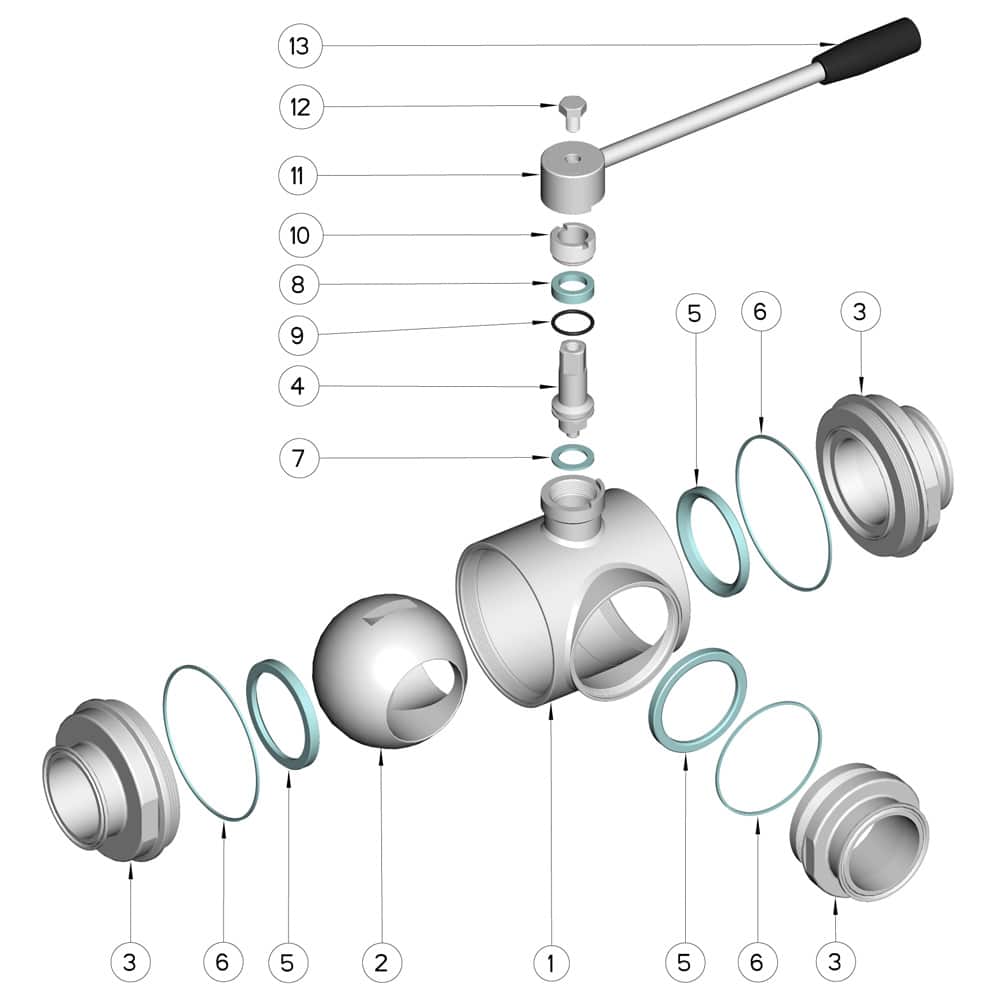

| POS. | Denomination | PCS | MAT. |
|---|---|---|---|
| 1 | Body | 1 | AISI 316L |
| 2 | Ball | 1 | AISI 316L |
| 3 | Sleeves | 3 | AISI 316L |
| 4 | Stem | 1 | AISI 316L |
| 5 | Ball Seals | 3 | PTFE Vergine Modificato |
| 6 | Sleeve Seals | 3 | NBR |
| 7 | Stem Seal | 1 | PTFE |
| 8 | Stem Seal | 1 | PTFE |
| 9 | Stem or-Seal | 1 | FKM |
| 10 | Register ring | 1 | AISI 304L (303) |
| 11 | Lever | 1 | AISI 304L |
| 12 | SCREW | 1 | AISI 304L |
| 13 | Handle | 1 | Resin |
