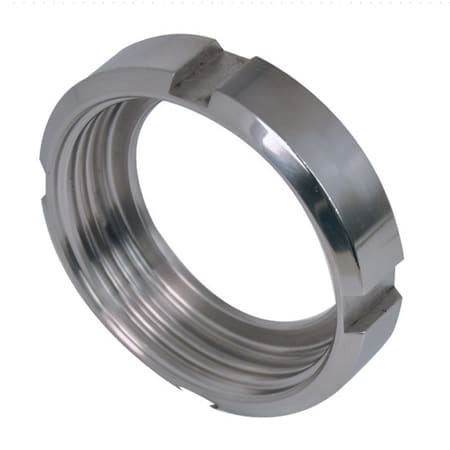

733001 Anschlagring DIN 11851
Anschlagring DIN 11851
Material: AISI 304L (1.4307)
Auf Anfrage:
M.O.C.A. CE 1935/2004

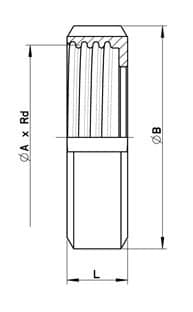

| DN | Ø A x Rd | Ø B | L | Kg | CODE AISI 304L |
|---|---|---|---|---|---|
| 10 | 28 x 1/8" | 38 | 18 | 0,06 | 733001 40100 |
| 15 | 34 x 1/8" | 44 | 18 | 0,08 | 733001 40400 |
| 20 | 44 x 1/6" | 54 | 20 | 0,13 | 733001 40700 |
| 25 | 52 x 1/6" | 63 | 21 | 0,18 | 733001 41000 3D |
| 32 | 58 x 1/6" | 70 | 21 | 0,21 | 733001 41300 |
| 40 | 65 x 1/6" | 78 | 21 | 0,25 | 733001 41600 |
| 50 | 78 x 1/6" | 92 | 22 | 0,33 | 733001 41900 |
| 60 | 85 x 1/6" | 99 | 22 | 0.39 | 733001 42000 |
| 65 | 95 x 1/6" | 112 | 25 | 0,58 | 733001 42200 3D |
| 80 | 110 x 1/4" | 127 | 30 | 0,79 | 733001 42500 |
| 90 | 120 x 1/4" | 138 | 30 | 0,96 | 733001 42700 |
| 100 | 130 x 1/4" | 148 | 31 | 1,02 | 733001 42800 |
| 125 | 160 x 1/4" | 178 | 35 | 1,64 | 733001 43100 |
| 150 | 190 x 1/4" | 210 | 40 | 2,45 | 733001 43600 |
